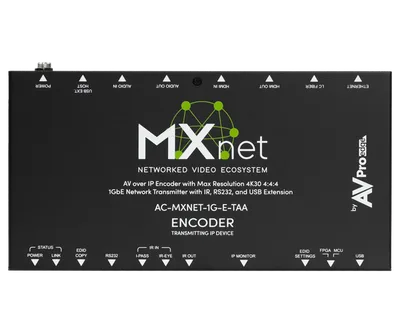

AC-MXNET-1G-E-TAA

Key specs

IR	Bidirectional Device Control / Extension
PoE	IEEE 802.3af (15.4 W)
USB	HID-Compliant
HDMI	HDCP 2.x, EDID Management (Encoder), CEC (Decoder)
Audio	(1) × 5-Pin Terminal Block, Balanced L/R Audio out (1) × 3.5 mm mini-stereo jack, Audio in
RS 232	Bidirectional Device Control / Monitoring
Latency	16 ms@60 Hz
Mounting	Rack and Furniture mount support
Warranty	10 years
SFP / SFP+	(1) × SFP Slot
Audio Codec	Proprietary Codec
Signal Type	DVI 1.0 (ingested, outputs as HDMI), HDMI 2.0b
Video Codec	Proprietary Codec based on M-JPEG
Power Supply	Input: AC 120 V to 240 V-50/60 Hz 0.8 A Output: DC 12 V 2 A
Weight (Unit)	1.25 lb. (0.57 kg)
Embedded Audio	Stereo Analog Audio (3.5 mm jack)
Ethernet / LAN	(1) × female RJ45, PoE
Color Bit Depth	1080p (8-, 10-bit), 4K (8-, 10-bit) (Compresses to 8-bit Output)
Video Resolution	720p@50/60 Hz; 1080p@24, 50 & 60 Hz; 4K@30 Hz
De-Embedded Audio	Balanced Stereo Analog Audio (5-pin Phoenix connector)
Dimensions (Unit)	W × D × H: 199.14 × 103.1 × 13.47 mm (7.84 × 4.06 × 0.53 in.)
Power Consumption	Max: 6.5 W
Visually Lossless	1080p@60 Hz SDR RGB (8-bit), 4K@30 Hz SDR RGB (8-bit)
Weight (Packaged)	1.65 lb. (0.74 kg)
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0 (Compresses to RGB Output) RGB
Operating Humidity	5% to 90% RH, non-condensing
Storage Temperature	-4 to 140 °F (-20 to 60 °C)
Streaming Protocols	TCP, UDP, IP, IGMP-V2
SFP / SFP+ and Fiber	1000BASE-SX SFP Transceiver Module (MMF, 850 nm, 550 m, LC, DOM) 1000BASE-LX/LH SFP 1310 nm 10 km Transceiver Module
Dimensions (Packaged)	W × D × H: 309.88 × 180.09 × 54.10 mm (12.2 × 7.09 × 2.13 in.)
Operating Temperature	23 to 125 °F (-5 to 51 °C)
HDCP / Copy Protection	HDCP 2.x and earlier
Audio Format (end to end)	PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1, Dolby Digital Plus, DTS 5.1, DTS–ES, DTS–HD Master Audio
Audio Format (HDMI Loopout)	Same as End to End, with the addition of Dolby MAT 8-Ch.
Regulatory / Certifications	FCC, CE, UL
