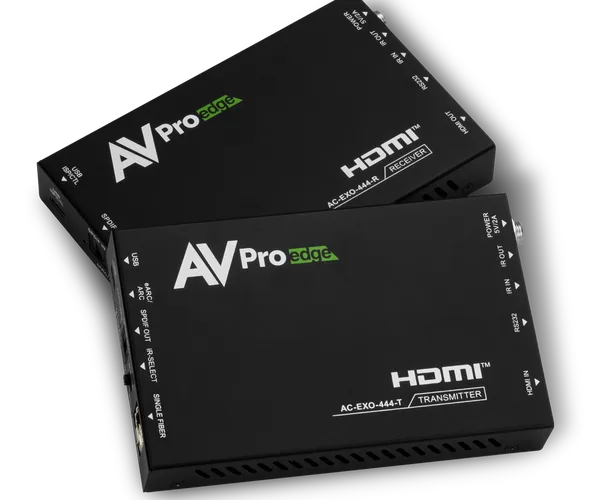

AC-EXO-444-KIT

Key specs

HDMI	TX & RX: HDMI Type-A 19-pin, female
Type	Single-mode OS2
Notes	*Specifications subject to change without notice. Mass & dimensions are approximate
Power	TX & RX: Barrel Connector
RS 232	TX & RX: 3-Pin Euroblock
Mounting	Mounting brackets (screws included)
Warranty	10 years
Bandwidth	18 Gbps
IR Receive	TX & RX: 3.5 mm Stereo (3-Conductor)
Color Space	YUV (Component), RGB (CSC: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65)
HDR Formats	HDR10, HDR10+, Dolby Vision, HLG
IR Transmit	TX & RX: 3.5 mm Mono (2-Conductor)
Power Supply	Input: 5 V DC, 2 A Output: 5 V 2 A Locking
Weight (Unit)	0.6 lb. (0.27 kg)
Connector Type	Simplex LC (Lucent Connector)
Color Bit Depth	Up to 16-bit (1080p), up to 12-bit (4K)
Video Resolution	Up to 4K/60 Hz 4:4:4
Dimensions (Unit)	L × W × H: 82.55 × 130.175 × 20.638 mm (3.25 × 5.125 × 0.8125 in.)
Power Consumption	Total: 4 W max
Recommended Fiber	OS2 Cleerline SSF™ Single-mode Fiber
Single-Mode (OS2)	Up to 2 km
Weight (Packaged)	3.8 lb. (1.7 kg)
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0
Operating Humidity	5% to 90% RH, non-condensing
Firmware / ISP Port	USB-C
Storage Temperature	-4 to 140 °F (-20 to 60 °C)
Dimensions (Packaged)	L × W × H: 136.53 × 192.1 × 84.14 mm (5.4 × 7.6 × 3.313 in.)
Operating Temperature	23 to 125 °F (-5 to 51 °C)
HDCP / Copy Protection	HDCP 2.3 and earlier
Audio (Extracted Digital)	TX Only: TOSLINK
HDMI Cable Distance (AOC)	4K/60 Hz 4:4:4: Up to 130 ft. (using Bullet Train AOC)
Formats Supported (TOSLINK)	TX out: LPCM 2.0-Ch., Dolby Digital, DTS 5.1, Dolby Digital Plus
Regulatory / Certifications	FCC, CE
Audio Formats Supported HDMI	LPCM up to 7.1-Ch. @ 192 kHz 24-bit, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos (All Formats), Dolby AC-4, DTS-Digital Surround, DTS-ES Discrete, DTS-HD High Res Audio, DTS-HD Master Audio, DTS:X
HDMI Cable Distance (Passive)	4K/60 Hz 4:4:4: Up to 50 ft. (using Bullet Train HDMI)
Formats Supported HDMI ARC/eARC Out TX	LPCM 2.0-Ch., LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS:X, Dolby Atmos
Audio Formats Supported Extracted (TOSLINK)	TX only: LPCM 2.0-Ch., Dolby Digital, DTS 5.1, Dolby Digital Plus
