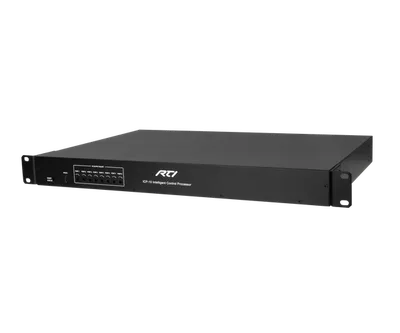

AVPro Edge RTI-ICP-10 · 1 of 1 · Image: AVPro Edge
Key specs
| IR | 8 |
|---|---|
| RAM | 3GB |
| Cores | Quad |
| RS485 | 2 |
| Sense | 8 |
| USB A | 2 |
| USB C | 1 x Programming port |
| Wi Fi | No |
| RS 232 | 8 |
| Relays | 8 |
| IR Input | 1 |
| Mounting | Rack Mount (Brackets & Screws Included) |
| Warranty | 3 years; Specifications subject to change without notice. Mass & dimensions are approximate |
| Flash Memory | 16GB |
| Power Supply | Input: AC 100 V to 240 V~ 50/60 Hz Output: DC 12 V 2 A |
| Processor IC | NXP i.MX8 mm |
| Weight (Unit) | 5.5 lb. (2.6 kg) |
| 12 VDC Trigger | 8 |
| CPU Clock Rate | 1.8 GHz |
| Ethernet / LAN | Port 1: 10/100/1000 PoE Port 2: 10/100/1000; Ports operate as a switch or separate NICs |
| Contact Trigger | 8 |
| Dimensions (Unit) | W × D × H: 431.8 × 299.7 × 43.7 mm (17.0 × 11.8 × 1.7 in.) |
| Power Consumption | Max: 24 W (12 V 2 A) |
| Weight (Packaged) | 9 lb. (4 kg) |
| Operating Humidity | 5% to 90% RH, non-condensing |
| Storage Temperature | -4 to 140 °F (-20 to 60 °C) |
| Dimensions (Packaged) | W × D × H: 470 × 434 × 114 mm (18.5 × 17.1 × 4.5 in.) |
| Operating Temperature | 23 to 125 °F (-5 to 51 °C) |
| Regulatory / Certifications | FCC, CE, RCM |
