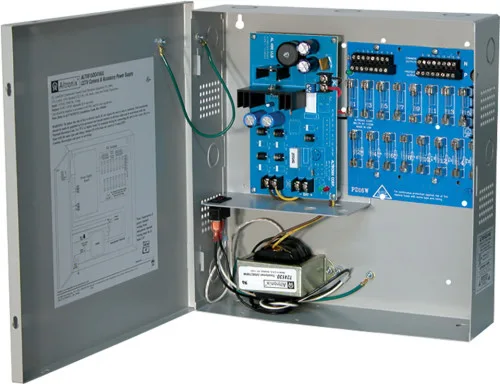

Altronix ALTV615DC416UL · 1 of 1 · Image: Altronix
Key specs
| Input | Input 115VAC, 50/60 Hz, 0.9A. |
|---|---|
| Output | Sixteen (16) Class 2 Rated fuse protected power limited outputs.; 6VDC to 15VDC field adjustable.; 4A total continuous supply current (0.25A per device, 3.5A max.).; Output fuses are rated @ 3.5A/250VAC.; Filtered and electronically regulated outputs. |
| Features | AC input and DC output LED indicators.; Illuminated power disconnect circuit breaker with manual reset.; Spare fuse(s) provided.; Unit maintains camera synchronization.; Ease of installation saves time and eliminates costly labor. |
| Electrical | Operating: 0° C to 49° C (32° F to 120° F).; Storage: - 20° C to 70° C ( - 4° F to 158° F).; Relative Humidity 85% +/- 5%.; BTU/Hr (approx.): 9 - 23 BTU/Hr.; System AC input VA requirement: 103.5VA. |
| Temperature | Operating: 0° C to 49° C (32° F to 120° F).; Storage: - 20° C to 70° C ( - 4° F to 158° F). |
