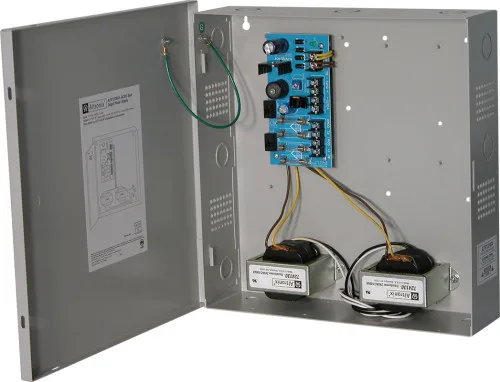

Altronix ALTV1224C4 · 1 of 1 · Image: Altronix
Key specs
| Input | 115VAC 50/60 Hz, 1.52A. |
|---|---|
| Output | Four (4) individually fused outputs.; Two (2) fuse protected outputs @ 12VDC.; Two (2) fuse protected outputs @ 24VAC.; 6A total output current.; 2A supply current @ 12VDC.; 4A supply current @ 24VAC.; DC output fuses are rated @ 1A.; AC output fuses are rated @ 3.5A.; Filtered and electronically re |
| Features | AC/DC power LED indicators.; Power ON/OFF switch.; Unit maintains camera synchronization.; Ease of installation saves time & eliminates costly labor. |
| Temperature | Operating 0ºC to 49ºC (32ºF to 120ºF).; Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).; Relative Humidity 85% +/- 5%.; BTU/Hr. (approx.): 72 BTU/Hr.; System AC input VA requirement: 174.8VA. |
