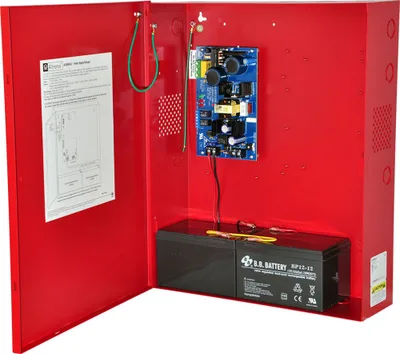

AL300ULXJ

Key specs

Input	Input 115VAC, 60Hz, 3.5A.; Input fuse rated @ 3.5A/250V.
Output	12VDC or 24VDC selectable output.; Burglar Alarm Applications (UL 603):; 12VDC = 10VDC-13.2VDC.; 24VDC = 20VDC-26.4VDC.; 12VDC or 24VDC @ 2.5A supply current.; Class 2 Rated power limited output.; Filtered and electronically regulated output.; Short circuit and thermal overload protection.
Supervision	AC fail supervision (form "C" contacts).; Notification trigger is selectable for 30 seconds (factory set) or 6 hours.; Low battery supervision (form "C" contacts).; Battery presence supervision (form "C" contacts).
Temperature	Operating: 0° C to 49° C (32° F to 120° F).; Storage: - 20° C to 70°C ( - 4° F to 158° F).; Relative Humidity: 85% +/- 5%.; 12VDC: 15 BTU/Hr.; 24VDC: 31 BTU/Hr.; System AC input VA requirement: 402.5VA.
Battery Charging	Built-in charger for sealed lead acid or gel type batteries.; Maximum charge current: 0.7A.; Automatic switch over to stand-by battery when AC fails.; Zero voltage drop when switched over to battery backup.; (Batteries are sold separately).
BTU/Hr. (approx.)	12VDC: 15 BTU/Hr.; 24VDC: 31 BTU/Hr.
Visual Indicators	AC input, DC output and Battery LED indicators.
