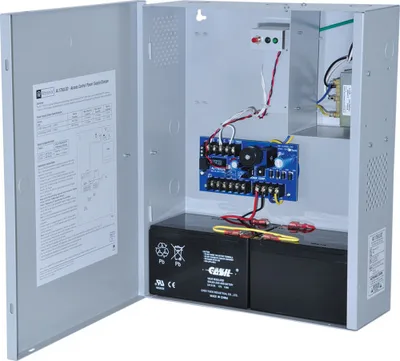

AL175ULX2

Key specs

Input	Input 115VAC, 60Hz, 0.6A.; Access control trigger input.
Output	12VDC or 24VDC selectable outputs.; 1.75A supply current.; Two (2) Class 2 Rated power limited outputs.; Fail-Safe/Fail-Secure lock output (switched).; Auxiliary power output (unswitched).; PTC protected outputs, rated @ 2.5A.; Filtered and electronically regulated output.; Short circuit and thermal
Supervision	AC fail supervision (form "C" contacts).; Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
Temperature	Operating: 0ºC to 49ºC (32ºF to 120ºF).; Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).; Relative Humidity: 85% +/- 5%.; 12VDC: 11 BTU/Hr.; 24VDC: 22 BTU/Hr.; System AC input VA requirement: 69VA.
Battery Charging	Automatic switch over to stand-by battery when AC fails.; Maximum charge current: 400mA.; (Batteries are sold separately).
BTU/Hr. (approx.)	12VDC: 11 BTU/Hr.; 24VDC: 22 BTU/Hr.
Visual Indicators	AC input and DC output LED indicators.
